ROTARY TABLES

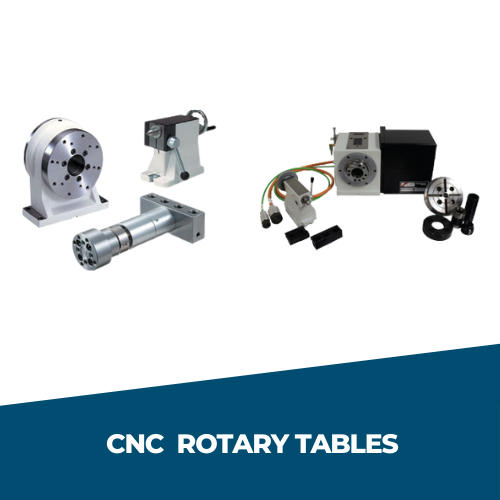

Optimize Your Machining Centers With 4th and 5th Axis Rotary Tables
Engineered to tailor complex machining needs
- Our rotary tables can easily integrate with your vertical machining centers. It can turn your vertical machining centers from a 3rd axis into a 4th, or 4th into a 5th by simply mounting the rotary table right on any pallet.
- With the rigid build, a solid meehanite cast body frame, and tremendous torque capacity (250 ft-lbs.)
- Compact unit has a torque rating that is unmatchable. Its compact size allows it to be used in numerous applications and with its seamless interface, you will find this rotary table to be a simple plug-and-play!
How to Select Your Best CNC Rotary Table
1. Select The Transmission Mechanism
Material / Type |
Aluminum Bronze |
Special High Tensile Brass |
Ion Nitrated Alloy Steel |
Japanese Made | Fanuc |
---|---|---|---|---|---|
Compact Footprint |
|
*** | |||
Zero Backlash | *** | *** | |||
Anti-Wear | * | ** | *** | *** | ** |
Maintenance | * | * | * | ** | *** |
Rotary Speed | * | * | * | ** | *** |
Indexing Precision / Repeatability | ** | ** | ** | ** | *** |
Loading Capacity | *** | *** | *** | *** | ** |
Drive Torque (without brake) | *** | *** | ** | ** | * |
Popularity | *** | *** | *** | ** | * |
2. Select Faceplate Diameter
Faceplate Diameter Choices | ||||
Workpiece Diameter: Must be within the rotary table diameter |
|
Ø125 | Ø170 | Ø210 |
Workpiece Weight: Must be within the chosen table load specifications | ||||
Workpiece Positioning: The value of the (F x L) should be within the torque force | Ø255 | Ø320 | Ø400 | |
When the Eccentric Load is Applied: The workpiece inertia should be within the allowable value | ||||
Workpiece of Larger Diameter, but Lighter Weight: The workpiece must not interface with the machine tool | Ø500 | Ø630 | Ø800 |
3. Determine Servo System
Determine Servo System | ||
---|---|---|
Additional Axis (the 4th or 5th axis) Installed in the Machine Tool Control |
1 | When simultaneous machining with the X / Y / Z axis is required. |
2 | Rotary table programming is input at the machine tool control. | |
Independent Controller (M-Signal) Used | 1 | When the compatible servo amplifier for the 4th or 5th axis is not available. |
2 | Rotary Table programming should be input directly into the independent control. | |
|
4. Determine Table Positioning
Determine Table Positioning | ||
---|---|---|
Vertical | Horizontal | Both |
|
|
5. Select Servo Motor Location to Avoid Interference
Back Mount | Left Mount | Right Mount |
Right Mount with Sheetmetal Cover Reduction |
|
---|---|---|---|---|
|
|
|
(compact front but for vertical positioning only) |
|
Ensure that there is no interference among the rotary table, workpiece, and machine tool. |
||||
Weight | 1 | Check that the control weight of the workpiece and rotary table is within the allowable load of the machine | ||
X-Axis | 2 | Check the workpiece length to ensure it fits on the machine table. | ||
X-Axis | 3 | Check if the maximum allowed protrusion of the base plate is less than 10mm at both ends. | ||
Y-Axis | 4 | Check to ensure no interference with the column. | ||
Y-Axis | 5 | Check to ensure there is no interference with the splash guard. | ||
Z-Axis | 6 | Check if the effective stroke on the Z-axis is acceptable. | ||
Z-Axis |
7 | Check that there is no interference with the ATC. | ||
a. | Distance between the spindle nose and the working table | |||
b. | Stroke for the tool changer | |||
c. | Allowable tool length | |||
d. | Swing while the tool changes |
6. Determine Support Table or Tailstock
Determine if a Support Table or Tailstock is Needed | |||
---|---|---|---|
Support Table |
Manual Tailstock | ||
No Brake Pneumatic Hydraulic |
|
Manual Pneumatic Hydraulic |
|
7. Select Accessories
Select Your Accessories | ||
---|---|---|
Rotary Joint | Rotary Encoder | Air Hydraulic Booster |
|
|
(For clamping hydraulic brake rotary tables using compressed air) |

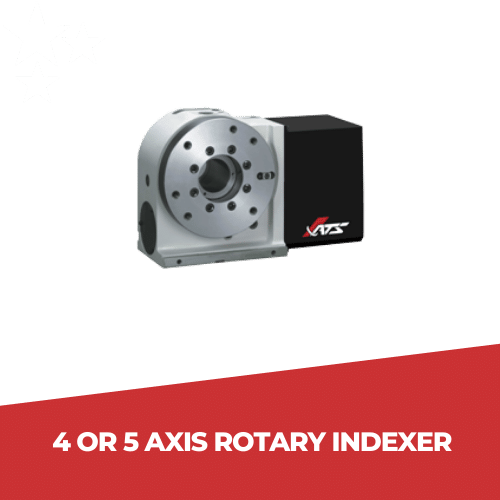

MR SERIES - INDEXER & 4TH AXIS MODELS
MR - MODEL |
MR - 120 |
MR - 160 | MR - 200 | MR - 250 | MR - 320 |
|
---|---|---|---|---|---|---|
Right-handed Type |
○ | ○ | ○ | ○ | ○ | |
Left-handed type |
○ | ○ | ○ | ○ | ○ | |
Table Diameter (mm) |
Ø128 | Ø165 | Ø202 | Ø250 | Ø 320 | |
Center Hole Diameter (mm) |
Ø50H7 | Ø50H7 | Ø65H7 | Ø100H7 | Ø130H7 | |
Through Hole Diameter (mm) |
Ø32 | Ø40 | Ø45 | Ø70 | Ø105 | |
Centre Height (mm) |
120 | 140 | 140 | 180 | 225 | |
Clamping Method |
Pneumatic | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |
Clamping Torque (N.m) |
150 | 310 | 350 | 600 | 1200 | |
Clamping Torque (at 0.5 MPa) |
||||||
Motor Axis Reduced Inertia (kg*m2) |
0.00004 | 0.00008 | 0.00017 | 0.00031 | 0.00031 | |
Servomotor (for Fanuc spec.) |
aiF 2/5000-B | aiF 2/5000-B | aiF 4/5000-B | aiF 4/5000-B | aiF 8/3000-B | |
Total Reduction Ratio |
21916 | 26299 | 32874 | 32874 | 1/120 | |
Max. Rotation Speed (min -1) |
50 |
41.6 |
33.3 |
33.3 | 25 | |
(at motor 3000min -1) | (at motor 3000min -1) | |||||
(at motor 3000min -1) |
(at motor 3000min -1) |
(at motor 3000min -1) |
33.3 | 16.6 | ||
(at motor 3000min -1) | (at motor 2000min -1) | |||||
Allowable Work Inertia (kg*m2) | 0.22 | 0.51 | 1 | 1.95 | 4.49 | |
Indexing Accuracy (sec) | 20 | 20 | 20 | 20 | 20 | |
Repeatability (sec) | 4 | 4 | 4 | 4 | 4 | |
Mass of Product (kg) |
33 | 41 | 61 | 85 | 130 | |
Allowable Load |
Horizontal (kg) | 120 | 160 | 200 | 250 | 350 |
Vertical (kg) | 60 | 80 | 100 | 125 | 180 | |
Manual Tailstock (as an option) |
MR120RN | MR160RN | MR200RN | MR250RN | MR320RN | |
Tail Spindle (as an option) | TSR121A | MSR142A/TSR142A | MSR142A/TSR142A | MSR181A/TSR181A | TSR181A45 | |
Rotary Joint (as an option) |
RJ32-12Q04 | RJ40H16Q | RJ40H20Q02 | RJ70H25Q02 | RJ70H32Q01 | |
Hydraulic / Pneumatic 3 ports | Hydraulic / Pneumatic 4 ports | Hydraulic / Pneumatic 4 ports | Hydraulic / Pneumatic 6 ports | Hydraulic / Pneumatic 6 ports |
TR SERIES - INDEXER & 4TH AXIS MODELS
TR - MODEL |
TLX250 |
TRX320(TLX) | TR400(TL) | TR500(TL) | TR630 |
|
---|---|---|---|---|---|---|
Right-handed Type |
x | ○ | ○ | ○ | ○ | |
Left-handed type |
○ | ○ | ○ | ○ | x | |
Table Diameter (mm) |
Ø250 | Ø320 | Ø400 | Ø500 | Ø630 | |
Center Hole Diameter (mm) |
Ø105H7 | Ø135H7 | Ø180H7 | Ø200H7 | Ø280H7 | |
Through Hole Diameter (mm) |
Ø78 | Ø110 | Ø150 | Ø170 | Ø250 | |
Centre Height (mm) |
180 | 225 | 225 | 310 | 400 | |
Clamping Method |
Air-Hydraulic/Hydraulic | Air-Hydraulic/Hydraulic | Air-Hydraulic/Hydraulic | Air-Hydraulic/Hydraulic | Air-Hydraulic/Hydraulic | |
Clamping Torque (N.m) (at pneumatic TRX-0.5MPa, TR-0.4MPa, hydraulic 3.5MPa) |
1100 | 2600 | 2500 | 3200 | 4000 | |
Motor Axis Reduced Inertia (kg . m22) |
0.00073 | 0.00085 | 0.0028 | 0.0028 | 0.0064 | |
Servomotor (for Fanuc spec.) |
aiF 4/5000-B | aiF 8/3000-B | aiF 12/4000-B | |||
Total Reduction Ratio |
4th axis spec. | 1/90 | 1/120 | 1/180 | 1/180 | 1/180 |
(Fanuc spec.) | ||||||
M signal spec. | 1/90 | 1/180 | 1/180 | 1/180 | 1/180 | |
Max. Rotation Speed |
4th axis spec. | 33.3 |
25 |
11.1 |
11.1 | 11.1 |
(Fanuc spec.) | (at motor 3000min -1) | (at motor 3000min -1) | (at motor 2000min -1) | (at motor 2000min -1) | (at motor 2000min -1) | |
(min-1) |
M signal spec. |
33.3 | 16.6 | 11.1 | 11.1 | 8.3 |
(at motor 3000min-1) | (at motor 3000min-1) | (at motor 2000min-1) | (at motor 2000min -1) | (at motor 1500min -1) | ||
Allowable Work Inertia (kg.m2) | 1.95 | 4.48 | 10 | 18.73 | 49.62 | |
Indexing Accuracy (sec) | 20 | 20 | 20 | 20 | 20 | |
Repeatability (sec) | 4 | 4 | 4 | 4 | ||
Mass of Product (kg) |
142 | 181 | 350 | 550 | 900 | |
Allowable Load |
Horizontal (kg) | 250 | 350 | 500 | 600 | 1000 |
Vertical (kg) | 125 | 180 | 250 | 300 | 400 | |
Manual Tailstock (as an option) |
TS250RN | TS320RN | TS400RN | TS500RN | TS630RN | |
Tail Spindle |
MSR181A/TSR181A | TSR181A45 | Order Production |
Order Production |
Order Production |
|
Option | TSR181H | TSR181H45 | ||||
Rotary Joint |
RJ70H25D05 | RJ70H32K02 | Order Production | Order Production | Order Production | |
Option | Hydraulic / Pneumatic 6 ports | Hydraulic / Pneumatic 6 ports |
RC SERIES - INDEXER & 4TH AXIS MODELS
RC-Series | Unit | RC-170R |
RC-210R | RC-255R(N) | RC-320R(N)/320L | RC-400 |
|
---|---|---|---|---|---|---|---|
Table Diameter |
mm | Ø170 | Ø210 | Ø255 | Ø320 | Ø400 | |
Diameter of Table Central Hole |
mm | Ø67 | Ø67 | Ø110 | Ø150 | Ø150 | |
Inner Diameter of Mandrel Sleeve | mm | Ø40H7 | Ø40H7 | Ø80H7 | Ø120H7 35 Deep | Ø120H7 | |
Diameter of Center Through Hole |
mm | Ø40 | Ø40 | Ø80 Big Bore | Ø105 Big Bore | Ø120 Big Bore | |
Center Height (Vertical) |
mm | 135 | 160 | 160 | 210 | 255 | |
Table Height (Horizontal) |
mm | 152 | 152 | 200 | 235 | 250 | |
Table T-slot Width |
mm | 12H7 | 12H7 | 12H7 | 14H7 | 14H7 | |
Guide Block Width |
mm | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 30 | 30 | 20 | 20 | 20 | |
Repeatability |
sec. | 8 | 8 | 6 | 6 | 6 | |
Clamping System (Pneumatic / Hydraulic) |
kg/cm2 | Pneumatic 6 | Pneumatic 6/Hydraullic 35 | Hydraulic 35 | Hydraulic 35 | Hydraulic 35 | |
Clamping Torque | kg-cm | 31 | 31 (Pne.) /50 (Hyd.) | 70 | 115 | 200 | |
Servo Motor Model |
Fanuc | Taper shaft with key | αiF8/ßiS8 | αiF8/ßiS8 | αiF8/ßiS12 (Taper) | αiF12/ßiS22 (Straight) | αiF12/ßiS22 (Straight) |
Mitsubishi | Taper shaft with key | HG/HF-54/104 | HG/HF-54/104 | HG/HF-154 | HG/HF-204 (Straight) | HG/HF-204 (Straight) | |
Speed Reduction Ratio | - | 0.066666667 | 0.066666667 | 0.083333333 | 0.104166667 | 0.104166667 | |
Max. Rotation Rate of Table | r.p.m. | 83.3 | 83.3 | 50 | 33.3 | 33.3 | |
(Calculate with Fanuc aMotar) | |||||||
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec2 | 5.4 |
8.3 |
20.3 |
44.8 |
100 |
|
Allowable Vertical | kg | 75 | 75 | 100 | 150 | 200 | |
Workpiece Load (dynamic) |
With Tailstock | kg | 150 | 150 | 250 | 350 | 500 |
Horizontal | kg | 150 | 150 | 250 | 350 | 500 | |
Allowable Load (with clamping) | F | kgf | 1450 | 1450 | 2000 | 3000 | 4000 |
FxL | kgf.m | 110 | 110 | 150 | 300 | 400 | |
FxL | kgf.m | 31 | 31 (Pne.)/50 (hyd.) | 70 | 115 | 200 | |
Strength of Roller Gear Cam |
kg.m | 14 | 14 | 35 | 56 | 73.5 | |
Net Weight | kg | 44 | 52 | 110 | 187 | - |
AR SERIES - RIGHT SIDE INDEXER & 4TH AXIS MODELS
AR-Series | Unit | AR-125R |
AR-170R | AR-210R / 250R | AR-255HR | |
---|---|---|---|---|---|---|
Table Diameter |
mm | Ø125 | Ø170 | Ø210/Ø250 | Ø255 | |
Diameter of Table Central Hole |
mm | Ø35H7 | Ø67 | Ø67 | Ø110 | |
Inner Diameter of Mandrel Sleeve | mm | - | Ø40H7 | Ø40H7 | Ø80H7 | |
Diameter of Center Through Hole |
mm | Ø25 | Ø40 | Ø40 | Ø80 | |
Center Height (Vertical) |
mm | 110 | 135 | 160 | 160 | |
Table Height (Horizontal) |
mm | 152 | 152 | 152/160 | 200 | |
Table T-slot Width |
mm | 12H7 | 12H7 | 12H7 | 12H7 | |
Guide Block Width |
mm | 14H7 | 18H7 | 18H7 | 18H7 | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 40 | 20 | 20 | 15 | |
Repeatability |
sec. | 6 | 6 | 6 | 6 | |
Clamping System (Pneumatic / Hydraulic) |
kg/cm. | 6 | 6 | 6 | 6 | |
Clamping Torque | kg/cm. | 13 | 31 | 31 | 70 | |
Servo Motor Model |
Fanuc | Taper shaft with key | αiS4/ßiS4 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 |
Mitsubishi | Taper shaft with key | HG/HF-75/105 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-104/154 | |
Speed Reduction Ratio | - | 1:60 | 1:90 | 1:90 | 0.125 | |
Max. Rotation Rate of Table | r.p.m. | 83.3 * (33.3) | 44.4 * (33.3) | 44.4 * (33.3) | 33.3 * (25) | |
(Calculate with Fanuc aMotar) | ||||||
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec. | 2 |
5.4 |
8.3 / 11.7 |
20.3 |
|
Allowable Workpiece Load (dynamic) |
Vertical | kg | 50 | 75 | 75 | 100 |
With Tailstock | kg | 100 | 150 | 150 | 250 | |
Horizontal | kg | 100 | 150 | 150 | 250 | |
Allowable Load (with clamping) |
F | kgf | 1000 | 1450 | 1450 | 2000 |
FxL | kgf.m | 45 | 110 | 110 | 150 | |
FxL | kgf.m | 13 | 31 | 31 | 70 | |
Strength of Roller Gear Cam | kg.m | 9 * (3.7) | 18 * (14.6) | 18 * (14.6) | 55 * (19.6) | |
Net Weight | kg | 34 | 50 | 55/58 | 116 |
AR SERIES - BACKSIDE MOTORS - INDEXER & 4TH AXIS MODELS
AR-Series | Unit | AR(s)-125B |
AR(s)-170B | AR(s)-210B | AR(s)-250B | |
---|---|---|---|---|---|---|
Table Diameter |
mm | Ø125 | Ø170 | Ø210 | Ø250 | |
Diameter of Table Central Hole |
mm | Ø35H7 | Ø67 | Ø67 | Ø67 | |
Inner Diameter of Mandrel Sleeve | mm | - | Ø40H7 | Ø40H7 | Ø40H7 | |
Diameter of Center Through Hole |
mm | Ø25 | Ø40 | Ø40 | Ø40 | |
Center Height (Vertical) |
mm | 110 | 135 | 160 | 160 | |
Table Height (Horizontal) |
mm | - | - | - | - | |
Table T-slot Width |
mm | 12H7 | 12H7 | 12H7 | 12H7 | |
Guide Block Width |
mm | 14H7 | 18H7 | 18H7 | 18H7 | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 40 | 20 | 20 | 20 | |
Repeatability |
sec. | 6 | 6 | 6 | 6 | |
Clamping System (Pneumatic / Hydraulic) |
kg/cm. | 6 | 6 | 6 | 6 | |
Clamping Torque | kg/cm. | 13 | 31 | 31 | 31 | |
Servo Motor Model |
Fanuc | Taper shaft | αiS4/ßiS4 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 |
Mitsubishi | Taper shaft | HG/HF-75/105 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-54/104 | |
Speed Reduction Ratio | - | 1:60 | 1:90 | 1:90 | 1:90 | |
Max. Rotation Rate of Table (Calculate with Fanuc aMotar) |
r.p.m. | 83.3 * (33.3) | 44.4 * (33.3) | 44.4 * (33.3) | 44.4 * (33.3) | |
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec. | 2 |
2.7 |
4.1 |
5.9 |
|
Allowable Workpiece Load (dynamic) |
Vertical | kg | 50 | 75 | 75 | 75 |
With Tailstock | kg | 100 | 150 | 150 | 150 | |
Horizontal | kg | - | - | - | - | |
Allowable Load (with clamping) |
F | kgf | 1000 | 1450 | 1450 | 1450 |
FxL | kgf.m | 45 | 110 | 110 | 110 | |
FxL | kgf.m | 13 | 31 | 31 | 31 | |
Strength of Worm Gear | kg.m | 9 * (3.7) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | |
Net Weight (servo motor excluded) | kg | - | 60 | 65 | 72 |
AR SERIES - LEFT SIDE MOTORS - INDEXER & 4TH AXIS MODELS
AR-Series | Unit | AR(s)-125L |
AR(s)-170L | AR(s)-210L | AR(s)-250L | |
---|---|---|---|---|---|---|
Table Diameter |
mm | Ø125 | Ø170 | Ø210 | Ø250 | |
Diameter of Table Central Hole |
mm | Ø35H7 | Ø67 | Ø67 | Ø67 | |
Inner Diameter of Mandrel Sleeve | mm | - | Ø40H7 | Ø40H7 | Ø40H7 | |
Diameter of Center Through Hole |
mm | Ø25 | Ø40 | Ø40 | Ø40 | |
Center Height (Vertical) |
mm | 110 | 135 | 160 | 160 | |
Table Height (Horizontal) |
mm | 152 | 152 | 152 | 160 | |
Table T-slot Width |
mm | 12H7 | 12H7 | 12H7 | 12H7 | |
Guide Block Width |
mm | 14H7 | 18H7 | 18H7 | 18H7 | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 40 | 20 | 20 | 20 | |
Repeatability |
sec. | 6 | 6 | 6 | 6 | |
Clamping System (Pneumatic / Hydraulic) |
kg/cm. | 6 | 6 | 6 | 6 | |
Clamping Torque | kg/cm. | 13 | 31 | 31 | 31 | |
Servo Motor Model |
Fanuc | Taper shaft | αiS4/ßiS4 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 | αiF4/αiF8/ßiS8 |
Mitsubishi | Taper shaft | HG/HF-75/105 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-54/104 | |
Speed Reduction Ratio | - | 1:60 | 1:90 | 1:90 | 1.90 | |
Max. Rotation Rate of Table | r.p.m. | 83.3 * (33.3) | 44.4 * (33.3) | 44.4 * (33.3) | 44.4 * (33.3) | |
(Calculate with Fanuc aMotar) | ||||||
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec. | 2 |
5.4 |
8.3 |
11.7 |
|
Allowable Workpiece Load (dynamic) |
Vertical | kg | 50 | 75 | 75 | 75 |
With Tailstock | kg | 100 | 150 | 150 | 150 | |
Horizontal | kg | 100 | 150 | 150 | 150 | |
Allowable Load (with clamping) |
F | kgf | 1000 | 1450 | 1450 | 1450 |
FxL | kgf.m | 45 | 110 | 110 | 110 | |
FxL | kgf.m | 13 | 31 | 31 | 31 | |
Strength of Worm Gears | kg.m | 9 * (3.7) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | |
Net Weight (servo motor excluded) | kg | 34 | 50 | 55 | 58 |
HR SERIES - INDEXER & 4TH AXIS MODELS
HR-Series | Unit | HR(s)-255 |
HR(s)-320 | HR(s)-400 | |
---|---|---|---|---|---|
Table Diameter |
mm | Ø255 | Ø320 | Ø400 | |
Diameter of Table Central Hole |
mm | Ø110 | Ø150 | Ø150 | |
Inner Diameter of Mandrel Sleeve | mm | Ø80H7 | Ø120H7 | Ø120H7 | |
Diameter of Center Through Hole |
mm | Big Bore Ø80 | Big Bore Ø120 | Big Bore Ø120 | |
Center Height (Vertical) |
mm | 160 | 210 | 255 | |
Table Height (Horizontal) |
mm | 200 | 235 | 250 | |
Table T-slot Width |
mm | 12H7 | 14H7 | 14H7 | |
Guide Block Width |
mm | 18H7 | 18H7 | 18H7 | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 15 | 15 | 15 | |
Repeatability |
sec. | 6 | 6 | 6 | |
Clamping System (Hydraulic) |
kg/cm2 | 35 | 35 | 35 | |
Clamping Torque | kg-m | 70 | 115 | 200 | |
Servo Motor Model |
Fanuc | - | αiF8/ßiS8 | αiF12/ßiS22 (straight shaft) | αiF12/ßiS22 (straight shaft) |
Mitsubishi | - | HG/HF-104/154 | HG/HF-204 (straight shaft) | HG/HF-204 (straight shaft) | |
Speed Reduction Ratio | - | 1:120 | 1:120 | 1:120 | |
Max. Rotation Rate of Table | r.p.m. | 33.3 * (25) | 25 | 25 | |
(Calculate with Fanuc aMotar) | |||||
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec2 | 20.3 |
44.8 |
100 |
|
Allowable Workpiece Load |
Vertical | kg | 100 | 150 | 200 |
With Tailstock | kg | 250 | 350 | 500 | |
Horizontal | kg | 250 | 350 | 500 | |
Allowable Load (with rotary table clamping) |
F | kgf | 2000 | 3000 | 4000 |
FxL | kgf.m | 150 | 300 | 400 | |
FxL | kgf.m | 70 | 115 | 200 | |
Strength of Worm Gears | kg.m | 55 * (19.5) | 80 | 170 | |
Net Weight (servo motor excluded) | kg | 109 | 204 | 286 |
TT SERIES - 5TH AXIS (4+1) MODELS
TT- MODEL |
TT-101 |
TT-140 | TT-150 | TT182/TW182 | TT-200 | TT251/TW251 | TT321/TW321 | |
---|---|---|---|---|---|---|---|---|
Tilt Angle Range |
-20○~+120○ | -110○~+110○ | -20○~+110○ | -35○~+110○ | -35○~+110○ | -35○~+110○ | -35○~+110○ | |
Table Diameter (mm) |
Ø110 | Ø140 | Ø150 | Ø180 | Ø200 | Ø250 | Ø320 | |
Center Hole Diameter (mm) | Ø50H7 | Ø60H7 | Ø60H7 | Ø65H7 | Ø65H7 | Ø100H7 | Ø135H7 | |
Through Hole Diameter (mm) |
Ø32 | Ø32 | Ø40 | Ø40 | Ø40 | Ø70 | Ø110 | |
Centre Height (mm) | 140 | 200 | 150 | 180 | 180 | 225 | 225 | |
Clamping Method | Pneumatic | Pneumatic | Pneumatic | Air-hydraulic / Hydraulic | Air-hydraulic / Hydraulic | Air-hydraulic / Hydraulic | Air-hydraulic / Hydraulic | |
Clamping Torque (N.m) | Rotating Axis | 180 | 280 | 350 | 450 | 600 | 900 | 2600 |
(at 0.5 MPa) | Tilting Axis | 300 | 500 | 550 | 800 | 1200 | 1200 | 2600 |
Motor Axis Reduced Inertia | Rotating Axis | 0.000082 | 0.000269 | 0.000242 | 0.000242 | 0.000225 | 0.0007 | 0.00083 |
(kg*m2) | Tilting Axis | 0.000081 | 0.000288 | 0.000132 | 0.000135 | 0.000125 | 0.00054 | 0.00046 |
Servo Motor |
Rotating Axis | αiF 1/5000-B | αiF 2/5000-B |
αiF 2/5000-B | αiF 2/5000-B | αiF 2/5000-B | αiF 4/5000-B | αiF 8/3000-B |
(for Fanuc spec.) | Tilting Axis | αiF 2/5000-B | ||||||
Total Reduction Ration | Rotating Axis | 1/72 | 1/72 | 1/72 | 1/90 | 1/90 | 1/90 | 1/120 |
1/180 | 1/360 | |||||||
Tilting Axis | 1/120 | 1/120 | 1/180 | 1/180 | 1/180 | 1/90 | 1/180 | |
1/180 | 1/360 | |||||||
Max. Rotation Speed (min-1) |
Rotating Axis | 41.6 | 41.6 | 41.6 | 33.3 | 33.3 | 33.3 | 25 |
(at motor 3000 min-1) | 16.6 | 8.3 | ||||||
Titling Axis | 25 |
16.6 |
16.6 |
16.6 |
16.6 |
33.3 |
16.6 | |
(at motor 3000 min-1) | 16.6 | 8.3 | ||||||
Allowable Work Inertia (kg*m2) |
0.05 | 0.12 | 0.14 | 0.25 | 0.3 | 0.78 | 1.92 | |
Indexing Accuracy (sec) |
Rotating Axis | 30 |
30 |
30 |
20 | 20 | 20 | 20 |
Tilting Axis | 60 | 60 | 60 | 60 | 60 | 45 | 45 | |
Repeatability (sec) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Mass of Product (kg) | 73 | 158 | 141 | 163 / 178 | 170 | 260 / 270 | 350 / 360 | |
Allowable Load |
at Horizontal (kg) | 35 | 50 | 50 | 60 | 60 | 100 | 150 |
at Tilted (kg) | 20 | 30 | 30 | 40 | 40 | 60 | 100 | |
Built-in Rotary Joint (as an option) |
RJ32-10T05 | RJ32TT140 | RJ40FTT150 | RJ40FTT182 | RJ40FTT200 | RJ70H25T02 | RJ70H32T03 | |
Hydraulic / Pneumatic 3 ports | Hydraulic / Pneumatic 4 ports | Hydraulic / Pneumatic 4 ports + Pneumatic exclusive 1 port | Hydraulic / Pneumatic 4 ports +Pneumatic exclusive 1 port | Hydraulic / Pneumatic 4 ports +Pneumatic exclusive 1 port | Hydraulic / Pneumatic 6 ports | Hydraulic / Pneumatic 6 ports | ||
Pneumatic Outer Cylinder (as an option) |
NY1312T18B | NY1312T18B | ||||||
Hydraulic Outer Cylinder (as an option) | NY0912T18A | |
FAR(s) SERIES - 5th AXIS (4+1) MODELS
FAR(s)-Series | Unit | FAR(S)-125 | FAR(S)-125B |
FAR(S)-170A (COMPACT TYPE) | FAR-170AH TILT AXIS: HYDRAULIC BRAKE | FAR(S)-170 (STANDARD TYPE) | FAR(S)-170B (BACK SIDE MOTOR TYPE) | FAR(S)-210 STANDARD TYPE) | FAR(S)-210B (BACK SIDE MOTOR TYPE) | |
---|---|---|---|---|---|---|---|---|---|---|
Table Diameter |
mm | Ø125 | Ø125 | Ø170 | Ø170 | Ø170 | Ø170 | Ø210 | Ø210 | |
Diameter of Table Central Hole |
mm | Ø35H7 | Ø35H7 | Ø67 | Ø67 | Ø67 | Ø67 | Ø67 | Ø67 | |
Inner Diameter of Mandrel Sleeve | mm | - | - | Ø40H7 | Ø40H7 | Ø40H7 | Ø40H7 | Ø40H7 | Ø40H7 | |
Diameter of Center Through Hole |
mm | Ø25 | Ø25 | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 | |
Table Height (Horizontal) | mm | 215 | 215 | 245 | 245 | 270 | 270 | 270 | 270 | |
Table T-slot Width | mm | 12H7 | 12H7 | 12H7 | 12H7 | 12H7 | 12H7 | 12H7 | 12H7 | |
Guide Block Width | mm | 14H7 | 14H7 | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | 18H7 | |
Axis |
mm | - | Rotation | Rotation | Rotation | Rotation | Rotation | Rotation | Rotation | |
Min. Increment |
deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision |
sec. | 40 | 40 | 20 | 20 | 20 | 20 | 20 | 20 | |
Repeatability |
sec. | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Clamping System (Pneumatic) |
kg/cm2 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
Clamping Torque | kg-m | 13 | 13 | 25 | 25 | 31 | 31 | 31 | 31 | |
Axis | Tilt (-300~+1200) | Tilt (-300~+1200) | Tilt ±1000 | Tilt ±1000 | Tilt ±1000 | Tilt ±1000 | Tilt ±1000 | Tilt ±1000 | ||
Min. Increment | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision | 60*1 | 60*1 | 60*1 | 60*1 | 60*1 | 60*1 | 60*1 | 60*1 | 60*1 | |
Repeatability | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
Clamping System (Pneumatic) | - | 6 | 6 | 6 | 6 | 6 / Hyd.35 (optional) | 6 / Hyd.35 (optional) | 6 / Hyd.35 (optional) | 6 / Hyd.35 (optional) | |
Clamping Torque | - | 31 | 31 | 31 | 31 | 31 /Hyd. 55 | 31 /Hyd. 55 | 31 /Hyd. 55 | 31 /Hyd. 55 | |
Servo Motor Model |
Fanuc | Taper | αiS4/ßiS4 | αiS4/ßiS4 | αiS4/ßiS4 | αiS4/ßiS4 | αiS4/ßiS8 | αiS4/ßiS8 | αiS4/ßiS8 | αiS4/ßiS8 |
Straight Shaft | ||||||||||
Mitsubishi | Taper shaft | HG/HF-75/105 | HG/HF-75/105 | HG/HF-75/105 | HG/HF-75/105 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-54/104 | HG/HF-54/104 | |
Speed Reduction Ratio | - | 1:60 | 1:60 | 1:72 | 1:72 | 1:90 | 1:90 | 1:90 | 1.90 | |
Max. Rotation Rate of Table (Calculate with Fanuc aMotar) |
r.p.m. | 44.4 * (33.3) | 44.4 * (33.3) | 33.3 * (16.6) | 33.3 * (16.6) | 33.3 * (16.6) | 33.3 * (16.6) | 33.3 * (16.6) | 33.3 * (16.6) | |
Allowable Inertia Load apacity (Horizontal) | kg.cm.sec2 | 0.97 | 0.97 | 2.2 | 2.2 | 2.7 | 2.7 | 4.13 | 4.13 | |
Allowable Workpiece Load |
00 Hortizontal | kg | 50 | 50 | 60 | 60 | 75 | 75 | 75 | 75 |
00~900 Tilt | kg | 35 | 35 | 40 | 40 | 50 | 50 | 50 | 50 | |
Allowable Load (with clamping) |
F | kgf | 400 | 400 | 600 | 600 | 750 | 750 | 750 | 750 |
FxL | kgf.m | 31 | 31 | 31 | 31 | 31 | 31 | Pne.31/Hyd. 55 | Pne.31/Hyd. 55 | |
FxL | kgf.m | 13 | 13 | 25 | 25 | 31 | 31 | 31 | 31 | |
Strength of Worm Gears (Rotary Axis) | kg.m | 9 * (3.7) | 9 * (3.7) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | 18 * (14.6) | |
Net Weight (servo motor excluded) | kg | 97/- | 97/- | 125 | 125 | 153 | 153 | 160 | 160 |
FHR(S) SERIES - 5TH AXIS (4+1) MODELS
FHR(S)-Series | Unit | FHR(S)-255C |
FHR(S)-255CL | |
---|---|---|---|---|
Table Diameter |
mm | Ø255 | Ø255 | |
Diameter of Table Central Hole |
mm | Ø110 | Ø110 | |
Inner Diameter of Mandrel Sleeve | mm | Ø80H7 | Ø80H7 | |
Diameter of Center Through Hole |
mm | Ø80 | Ø80 | |
Center Height (Vertical) |
mm | - | - | |
Table Height (Horizontal) |
mm | 290 | 290 | |
Table T-slot Width |
mm | 12H7 | 12H7 | |
Guide Block Width |
mm | 18H7 | 18H7 | |
Axis | - | Rotation | Rotation | |
Min Increment | deg. | 0.001 | 0.001 | |
Indexing Precision | sec. | 15 | 15 | |
Repeatability | sec. | 6 | 6 | |
Clamping System (Pneumatic) | kg/cm2 | 35 | 35 | |
Clamping Torque | kg.m | 70 | 70 | |
Axis | - | Tilt ±110º | Tilt ±110º | |
Min Increment | - | 0.001 | 0.001 | |
Indexing Precision | - | 60 *¹ | 60 *¹ | |
Repeatability | - | 8 | 8 | |
Clamping System (Pneumatic) | - | 35 | 35 | |
Clamping Torque | - | 140 | 140 | |
Servo Motor Model |
Fanuc |
Taper/ | αiF4/αiF8/αiS12/ßiS8 (Taper) |
αiF4/αiF8/αiS12/ßiS8 (Taper) |
Straight Shaft | ||||
Mitsubishi | Taper Shaft | HG/HF-104 | HG/HF-104 | |
Speed Reduction Ratio | - | 1:120 | 1:120 | |
Max. Rotation Rate of Table (Calculate with Fanuc aMotar) |
r.p.m. | 33.3 * (25) | 33.3 * (25) | |
Servo Motor Model |
FANUC | Taper/ | αiF8 / αiS12 / ßiS12(Taper) |
αiF8 / αiS12 / ßiS12(Taper) |
Straight Shaft | ||||
MITSUBISHI | Taper Shaft | HG/HF-154 | HG/HF-154 | |
Speed Reduction Ratio | - | 1:120 | 1:120 | |
Max. Rotation Rate of Table (Calculate with Fauc α Motor) |
r.p.m. | 16.6 * (11.1) | 16.6 * (11.1) | |
Allowable Inertia Load Capacity (Horizontal) | kg.cm.sec2 | 8.13 | 8.13 | |
Allowable Workpiece Load |
00 Horizontal | kg | 100 | 100 |
00~900 Tilt | kg | 75 | 75 | |
Allowable Load (with Rotary Table Clamping) |
F | kgf | 1500 | 1500 |
FxL | kgf.m | 140 | 140 | |
FxL | kg.m | 70 | 70 | |
Strength of Worm Gears (Rotary Axis) | kg.m | 55 * (31) | 55 * (31) | |
Net Weight (Servo motor excluded) | kg | 296 (Ø255C) | 312 (Ø255CL) |
DIRECT DRIVE SERIES MODELS
AD-Series | Unit | AD-170 |
AD-210 | AD-250HS | AD-260iB | AD-261iB-FA-CZ | |
---|---|---|---|---|---|---|---|
Table Diameter |
mm | Ø170 | Ø210 | Ø250 | Ø250 | Ø250 | |
Diameter of Table Central Hole |
mm | - | - | Ø50H7 x 5.5 Deep | - | - | |
Inner Diameter of Mandrel Sleeve | mm | Ø40H7 | Ø40H7 | - | Ø46H7 | Ø46H7 | |
Diameter of Center Through Hole |
mm | Ø40 | Ø40 | - | Ø46 | Ø46 | |
Center Height (Vertical) |
mm | 135 | 160 | 200 | 160 | 160 | |
Table Height (Horizontal) |
mm | - | - | 335 | - | - | |
Table T-slot Width |
mm | 12H7 | 12H7 | - | 12H7 | 12H7 | |
Guide Block Width |
mm | 18H7 | 18H7 | - | 18H7 | 18H7 | |
Cooling System | - | Free Cooling | Free Cooling | Water Cooling | Free Cooling/Oi Cooling | Free Cooling/Oi Cooling | |
Transmission Mechanism | - | - | - | D.D. Motor | - | - | |
Min. Increment | deg. | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | |
Indexing Precision | sec. | 20 | 20 | 20 | 20 | 20 | |
Repeatability | sec. | 4 | 4 | 4 | 4 | 4 | |
Clamping System (Pneumatic) | kg/cm2 | 6 | 6 | 6 | 6 | 6 | |
Clamping Torque | Nm | 310 | 310 | 450 (Powerful) | 450 (Powerful) | 450 (Powerful) | |
Servo Motor Model | - | DD Motor | DD Motor | DD Motor | DD Motor | FANUC DD Motor | |
Speed Reduction Ratio | - | Direct Drive | Direct Drive | Direct Drive | Direct Drive | Direct Drive | |
Rated / Max. Speed | r.p.m. | 150/200 | 150/200 | 150/200 | 150/200 | 200/300 | |
Rated / Max. Cutting Torque | Nm | 48/143 | 48/143 | 113/169 | 48/143 | 46 (Oil Cooling 62)/143 | |
Allowable Inertia Load Capacity | kg . cm/sec | 1.08 | 1.65 | 3.1 | 4.68 | 7.8 | |
Allowable | kg | 30 |
30 | 50 (Vertical) | 60 | 100 (Rated Speed) |
|
Workpiece Load (dynamic) |
With Tailstock | kg | 70 | 70 | - | 100 | 100 (Rated Speed) |
Horizontal | kg | - | - | 10000 | - | - | |
Allowable Load (with clamping) |
F |
N | 8000 | 8000 | 1150 | 10000 | 10000 |
FxL |
Nm | 105 | 105 | 550 | 231 | 231 | |
FxL |
Nm | 310 | 310 | 158 | 450 | 450 | |
New Weight |
kg | 55 | 61 | - | 84 | 90 | |
Electrical Specification | |||||||
Encoder |
- | Subject to demand and controller |
Subject to demand and controller | Subject to demand and controller | |||
Voltage (Back E.M.F.) | Vms/100rpm | 67.2 | 67.2 | 33 | 67.2 | - | |
Rotor Poles |
- | 44 | 44 | 22 | 44 | 28 | |
Rated/Max. Current |
Arms |
4.4/13.2 |
4.4/13.2 |
26.5/50.2 |
4.4/13/2 (Free Cooling) | 9.3/56.6 | |
11.8/34.5 (Water Cooling) | - | ||||||
Power Rating | kw | 0.75 | 0.75 | 9.9 | 0.75/1.9 (Water Cooling) | - |
