PULL BACK COLLET CHUCKS

Pullback

Pull Back Collet Chuck Features

  • Perfect for 1st operation work and feed-to-length bar feed applications

  • Cost-effective solution when part length is not a concern

  • Ideal for 1st operation and slug work

  • Direct mount to the machine tool

  • Choose the Pull Back Collet Chuck for your application needs:

  • C Style Pull Back

  • Available with step chuck capability which enables slug work up
    to 6.00" diameter

  • J Style Pull Back

  • Shorter collets allow for more tool clearance

  • S Style Pull Back

  • Available in shorter profile for more tool clearance

  • Super short body design for greater tool clearance & more z axis travel

C Style Collet Chuck Specifications
ITEM DESCRIPTION SPINDEL OAL FLANGE NOSE CAPACITY
5C - (Utilizes standard 5C collets) Inch Metric Inch Metric Inch Metric Inch Metric
5030-Z A3-5C A2-3 2.900 73.66 4.450 113.03 2.180 55.37 1.062 26.97
5040-A01 A4-5CA A2-4 3.500 88.90 5.450 138.43 2.180 55.37 1.062 26.97
5040-A02 A4-5CB A2-4 5.000 127.00 5.450 138.43 2.180 55.37 1.062 26.97
5050-A04 A5-5CA (1) A2-5 3.500 88.90 6.450 163.83 2.000 50.80 1.062 26.97
5050-B03 A5-5CA A2-5 3.500 88.90 6.450 163.83 2.180 55.37 1.062 26.97
5050-B01 A5-5CB A2-5 5.000 127.00 6.450 163.83 2.180 55.37 1.062 26.97
5050-B02 A5-5CB (1) A2-5 5.000 127.00 6.450 163.83 2.250 55.37 1.062 26.97
5060A-A05 A6-5CA (1) 5.000 5.000 127.00 7.450 189.23 2.250 57.15 1.062 26.97
5060A-C01 A6-5CA A2-6 5.000 127.00 7.450 189.23 2.180 55.37 1.062 26.97
5060A-Z A6-5CB A2-6 6.000 152.40 7.450 189.23 2.180 55.37 1.062 26.97
5080A-A14 A8-5C (1) A2-8 6.000 152.40 9.450 240.03 2.250 57.15 1.062 26.97
5080A-A13 A8-5C A2-8 6.000 152.40 9.450 240.03 2.180 55.37 1.062 26.97
50110-B12 110MM-5C 110 MM 5.000 127.00 5.450 138.43 2.180 55.37 1.062 26.97
50140A-A150 140 MM-5C 140 MM 5.500 139.70 7.450 189.23 2.180 55.37 1.062 26.97
50140-A155 140 MM-5C (1) 140 MM 5.500 139.70 7.450 189.23 2.250 57.15 1.062 26.97
16C - (Utilizes standard 16C collets) Inch Metric Inch Metric Inch Metric Inch Metric
1650-B05 A5-16C A2-5 6.250 158.75 6.450 163.83 3.400 86.36 1.625 41.28
1650S-D10 A5-16C S/C A2-5 6.250 158.75 6.450 163.83 5.450 138.43 1.625 41.28
1660B-D01 A6-16C A2-6 6.250 158.75 7.450 189.23 4.000 101.60 1.625 41.28
1660S-D11 A6-16C S/C A2-6 6.250 158.75 7.450 189.23 5.450 138.43 1.625 41.28
1680A-A17 A8-16C A2-8 6.500 165.10 9.450 240.03 3.500 88.90 1.625 41.28
1680-C265 A8-16C S/C 1680A-A17 A8-16C A2-8 6.500 165.10 9.450 240.03 3.500 88.90
16110-B180 110MM-16C 110 MM 5.000 127.00 5.450 138.43 2.735 69.47 1.625 41.28
16140-B186 140MM-16C 140 MM 6.000 152.40 6.450 163.83 3.375 85.73 1.625 41.28
20C - (Utilizes standard 20C collets) Inch Metric Inch Metric Inch Metric Inch Metric
20060-B270 A6-20C A2-6 8.000 203.20 7.450 189.23 4.000 101.60 2.000 50.80
20060S-B270 A6-20C S/C A2-6 8.000 203.20 7.450 189.23 4.000 101.60 2.000 50.80
20080-B305 A8-20C A2-8 8.375 212.73 9.450 240.03 5.000 127.00 2.000 50.80
25C - (Utilizes standard 25C collets) Inch Metric Inch Metric Inch Metric Inch Metric
2560-C121 A6-25C A2-6 8.250 209.55 7.450 189.23 4.400 111.76 2.559 65.00
2580-C120 A8-25C A2-8 8.250 209.55 9.450 240.03 5.250 133.35 2.559 65.00
J Style Collet Chuck Specifications
ITEM DESCRIPTION SPINDEL OAL FLANGE NOSE CAPACITY
2J - (Utilizes standard 2J collets) Inch Metric Inch Metric Inch Metric Inch Metric
2050-D08 A5-2J A2-5 5.000 127.00 6.450 163.83 3.400 86.36 1.375 34.93
2060A-B10 A6-2J A2-6 5.500 139.70 7.450 189.23 4.000 101.60 1.375 34.93
2080-D17 A8-2J A2-8 5.750 146.05 9.450 240.03 5.000 127.00 1.375 34.93
3J - (Utilizes standard 3J collets) Inch Metric Inch Metric Inch Metric Inch Metric
3050-B07 A5-3J A2-5 5.750 146.05 6.450 163.83 3.400 86.36 1.750 44.45
3060B-D03 A6-3J A2-6 6.000 152.40 7.450 189.23 4.000 101.60 1.750 44.45
3080A-F17 A8-3J A2-8 6.000 152.40 9.450 240.03 5.370 136.40 1.750 44.45
30140-B175 140MM-3J 1400 MM 6.000 152.40 6.450 163.83 3.750 95.25 1.750 44.45
22J - (Utilizes standard 22J collets) Inch Metric Inch Metric Inch Metric Inch Metric
2250-C11 A5-22J A2-5 6.000 152.40 6.450 163.83 4.000 101.60 2.250 57.15
2260A-C10 A6-22J A2-6 6.500 165.10 7.450 189.23 4.400 111.76 2.250 57.15
2280-B17 A8-22J A2-8 6.500 165.10 9.450 240.03 3.500 88.90 2.250 57.15
35J - (Utilizes standard 35J collets) Inch Metric Inch Metric Inch Metric Inch Metric
3580-F13 A8-35J A2-8 7.500 190.50 8.450 214.63 5.750 146.05 3.500 88.90
S Style Collet Chuck Specifications
ITEM DESCRIPTION SPINDEL OAL FLANGE NOSE CAPACITY
S15 (H) - (Utilizes standard S15 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
41550-C07 A5-S15H A2-5 5.500 139.70 6.450 163.83 3.375 85.73 1.500 38.10
41560-D06 A6-S15H A2-6 6.750 171.45 7.450 189.23 3.375 85.73 1.500 38.10
415140-B190 140 MM-S15H 140 MM 5.750 146.05 6.450 163.83 3.375 85.73 1.500 38.10
S20 (H) - (Utilizes standard S20 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
42050-C05 A5-S20H A2-5 5.625 142.88 6.450 163.83 4.500 114.30 2.000 50.80
42060A-D05 A6-S20HS A2-6 5.575 141.61 7.450 189.23 4.400 111.76 2.000 50.80
42060A-D07 A6-S20H A2-6 6.750 171.45 7.450 189.23 4.400 111.76 2.000 50.80
42080A-B13 A8-S20H A2-8 7.075 179.71 9.450 240.03 5.450 138.43 2.000 50.80
420140-B195 140 MM-S20H 140 MM 5.275 133.99 6.450 163.83 4.400 111.76 2.000 50.80
S22 (H) - (Utilizes standard S22 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
42260A-E06 A6-S22H A2-6 7.250 184.15 7.450 189.23 5.000 127.00 2.250 57.15
42280-B16 A8-S22H A2-8 8.700 220.98 9.450 240.03 5.700 144.78 2.250 57.15
S26 (H) - (Utilizes standard S26 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
42660B-E03 A6-S26H A2-6 5.750 146.05 7.450 189.23 5.750 146.05 2.625 66.68
42680B-C16 A8-S26HS A2-8 5.750 146.05 9.450 240.03 5.750 146.05 2.625 66.68
42680B-D16 A8-S26H A2-8 7.000 177.80 9.450 240.03 5.750 146.05 2.625 66.68
S30 (H) - ( Utilizes standrad S30 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
43060-E08 A6-S30H A2-6 6.375 161.93 7.450 189.23 5.750 146.05 3.000 76.20
43080A-E15 A8-S30HS A2-8 6.525 165.74 9.450 240.03 5.750 146.05 3.000 76.20
43080A-K05 A8-S30H A2-8 7.675 194.95 9.450 240.03 5.750 146.05 3.000 76.20
S35 (H) - (Utilizes standrad S35 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
43580-C300 A8-S35HS A2-8 6.750 171.45 9.450 240.03 7.000 177.80 3.500 88.90
435FN-B315-(60/80) F/N-S35H (1) A2-6/8 6.250 158.75 9.450 240.03 7.000 177.80 3.500 88.90
435FN-B315 F/N-S35H (1) A2-11 6.250 158.75 9.450 240.03 7.000 177.80 3.500 88.90
S40 (H) - (Utilizes standard S40 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
44011-7DEG A11-S40HS A2-11 7.500 190.50 11.500 292.10 7.900 200.66 4.000 101.60
44011-K16 A11-S40H BB A2-11 10.750 273.05 11.500 292.10 9.000 228.60 4.000 101.60
440FN-K20-(80/11) F/N-S40H (1) A2-8/11 7.600 193.04 11.500 292.10 8.200 208.28 4.000 101.60
S50 (H) - (Utlizes standard S50 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
45011-K25 A11-S50H A2-11 10.750 273.05 11.450 290.83 10.500 266.70 5.000 127.00

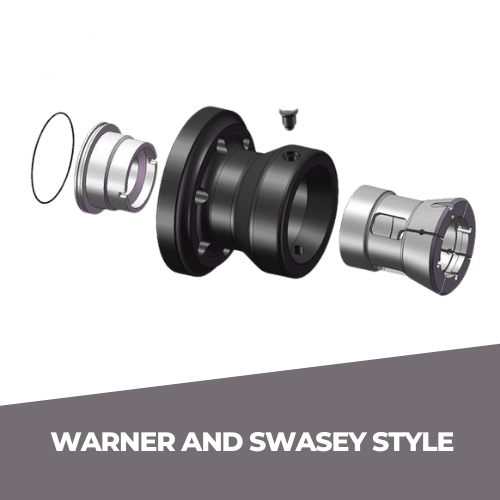

Warner and Swasey Style

Product Features

WARNER & SWASEY COLLET PADS

  • Designed with a screw that goes through the collet head angle. ATS provides 3 access holes on collet chuck OD for easy collets pad change over
Warner and Swasey Style Specifications
ITEM DESCRIPTION SPINDEL OAL FLANGE NOSE CAPACITY
S15 (W) - (Utilizes W & S #3 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
41550W-A08 A5-S15W A2-5 5.500 139.70 6.450 163.83 3.370 85.60 3.370 85.60
41560W-B09 A6-S15W A2-6 6.750 171.45 7.450 189.23 3.370 85.60 3.370 85.60
S20 (W) - (Utilizes W & S #4 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
42050W-C09 A5-S20W A2-5 5.625 142.88 6.450 163.83 4.400 111.76 4.400 111.76
42060W-D09 A6-S20W A2-6 6.750 171.45 7.450 189.23 4.400 111.76 4.400 111.76
42080W-B15 A8-S20W A2-8 8.250 209.55 9.450 240.03 4.400 111.76 4.400 111.76
S26(W) - (Utilizes W & S #5 collet pads) Inch Metric Inch Metric Inch Metric Inch Metric
42660W-A07 A6-S26W A2-6 6.250 158.75 7.450 189.23 5.750 146.05 5.750 146.05
42680W-C295 A8-S26W A2-8 7.500 190.50 9.450 240.03 5.750 146.05 5.750 146.05
42680W-C15 A8-S26WS A2-8 6.250 158.75 9.450 240.03 5.750 146.05 5.750 146.05
